OEM Custom Equipment Iron Casting Parts
Gray iron housing with machined flange faces and drilled bolt holes. Smooth surface finish from sand casting with secondary machining.
Gray Iron Sand Casting · CNC Finished
OEM Spare Parts
Iron Casting Spare Parts for Industrial Machinery
Grey and ductile iron castings — from prototype to serial production — with in-house pattern making, sand casting and CNC finishing.
Product Gallery
Recent Iron Casting Projects
OEM Sand Casting Iron Machining Brackets
Angular support bracket with machined mounting pads and reinforcement ribs. Drilled and tapped holes for attachment to machinery frames.
Bracket · Sand Casting · Machined

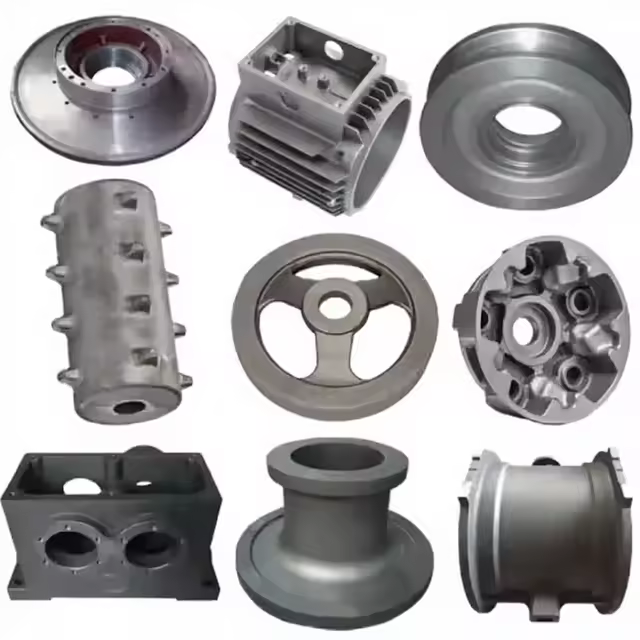

Large Box-Type Sand Cast Machinery Frame
Heavy structural frame casting with internal webbing and thick wall sections. Designed as a machine base with generous mounting pads and ribbed stiffeners.
Large Casting · Machine Base · Structural
ISO 9001 Ductile Iron GGG50 Casting Parts
Cylindrical ductile iron component with internal bore and external ribbing. Uniform dark gray surface indicates consistent pour temperature and mold fill.
GGG50 · Ductile Iron · ISO 9001
High Quality Cast Iron Foundry Parts
Assorted small to medium gray iron castings including pulleys, flanges, and bearing housings. Clean surface finish ready for machining or assembly.
Gray Iron · Pulleys · Flanges
Ductile Cast Iron Construction Machinery Parts
Heavy-duty ductile iron casting with complex geometry and multiple mounting bosses. Designed for excavator or loader structural applications.
Construction · Ductile Iron · Heavy Duty
Category Overview
Iron Casting Spare Parts
Materials, applications and quality certifications behind our foundry — from ductile GGG grades to alloy cast iron for mining and construction.
Advantages
Why engineers specify Force Machining
Grey iron GG15
GG30 / HT150:HT300
Ductile iron GGG40
GGG80 / QT400:QT800
In
house pattern making and 3D printed cores
CT7 dimensional tolerance capability
Engineered and verified in-house so field performance matches drawing intent.
MT / UT /
Engineered and verified in-house so field performance matches drawing intent.
Painting, powder coating and E
coat finishing
Applications
Where these parts perform
- Agricultural machinery
- Automotive brackets
- Pump housings
- Valve bodies
- Gearbox housings
- Counterweights
Technical Data
Headline performance figures
Materials
Grey iron, ductile iron, alloy iron
Weight range
0.5 kg – 300 kg
Tolerance
CT7 – CT10 (ISO 8062)
Surface finish
Ra 6.3 – Ra 1.6 μm after machining
Material
Certified metallurgy at every heat
Every bar and blank arrives with a mill certificate. We match material grade to service duty — from general-purpose carbon steel to corrosion-resistant stainless and high-fatigue alloys.
Grey iron
Sourced from certified mills with EN 10204 3.1 material certificates on request.
ductile iron
Sourced from certified mills with EN 10204 3.1 material certificates on request.
alloy iron
Sourced from certified mills with EN 10204 3.1 material certificates on request.
Manufacturing
From drawing to inspected part
01
Engineering & DFM Review
Our application engineers review your 2D drawing or 3D STEP model, run a design-for-manufacture study, and recommend material grade, heat treatment and surface finish to meet the specified duty cycle at the lowest landed cost.
02
Precision Manufacturing
CNC turning, 3–5 axis milling, cylindrical and internal grinding, gear hobbing, induction and case hardening — all performed in-house on calibrated equipment under IATF 16949-aligned process control.
03
Quality Verification
Statistical process control on critical dimensions, first-article (FAI/PPAP) approval, CMM traceable measurement, Rockwell/Brinell hardness mapping and Ra surface-roughness verification per ISO 9001:2015.
04
Preservation & Dispatch
VCI oil, desiccant sachet and heat-sealed PE for corrosion protection; ISPM-15 fumigation-free plywood cases; barcode labelling and pre-cleared export documentation for door-to-door delivery.
Industries
Trusted across demanding sectors
Our parts run inside gearboxes, drivelines and finished machinery for OEMs in a dozen industries — supported by full traceability and consistent global delivery.
Automotive Tier 1 & Tier 2 OEM
Agricultural Machinery & Harvesters
Construction & Earth-Moving Equipment
Oil, Gas & Petrochemical Downstream
Mining, Aggregates & Bulk Handling
Steel Mills & Metallurgical Plants
Cement, Lime & Building Materials
Marine, Shipbuilding & Offshore
Power Generation & Renewables
Food, Beverage & Pharmaceutical
Water & Wastewater Treatment
General Industrial Machinery Builders
Quality Inspection
Six layers of verification
Every batch passes chemistry, dimension, hardness, balance, finish and NDT gates before it leaves the plant.
Q.01
Material Certification (EN 10204 3.1)
Every heat is verified by optical emission spectrometry against the ordered grade. Certified mill test reports (MTC) accompany each shipment and are archived for ten years for full lot-to-lot traceability.
Q.02
Dimensional Inspection (CMM & FAI)
Zeiss and Mitutoyo coordinate measuring machines verify GD&T callouts to ISO 1101. First-article inspection (FAI) and PPAP Level 3 packages are issued for automotive and safety-critical parts on request.
Q.03
Hardness & Metallurgical Analysis
Rockwell (HRC), Brinell (HB) and micro-Vickers hardness maps confirm case depth and core properties. Metallographic sections are examined at 100–500× for grain size, phase distribution and inclusion rating.
Q.04
Dynamic Balancing (ISO 1940)
Rotating components — pulleys, sheaves and gears above 1,800 RPM — are dynamic-balanced to G6.3 as standard, with G2.5 available for high-speed drives. Residual unbalance is reported in g·mm per plane.
Q.05
Surface Finish & Coating Verification
Contact and non-contact Ra/Rz measurement, coating thickness by magnetic and eddy-current gauge, adhesion by cross-cut, and 500–1,000 h salt-spray corrosion testing per ASTM B117 on plated and painted parts.
Q.06
Non-Destructive Testing (NDT)
Magnetic particle (MPI), liquid dye penetrant (LPI) and ultrasonic (UT) inspection by ASNT Level II operators. Radiographic (RT) inspection subcontracted to accredited third-party labs when required.
SEC. 10 // PACKAGING
Export-grade packaging
- VCI film wrap and rust-inhibitor oil protect machined surfaces for up to 12 months of storage or transit
- Individual foam, corrugated dividers or moulded PE cradles isolate parts from impact and abrasion
- Fumigation-free plywood cases certified to ISPM-15 accepted at every major port worldwide
- Barcode labels, part-number marking and customer-branded packaging (private label) available on request
- Loose, bulk, palletised or kitted assemblies — packed to your inbound receiving specification
SEC. 11 // SHIPPING
Global shipping desk
- Incoterms 2020: FOB Shanghai / Ningbo / Qingdao standard, with EXW, CIF, CFR, DDP and DAP on request
- Air freight, sea LCL and FCL, and China–Europe rail coordinated in-house — no forwarder hand-offs
- Full export document set — Certificate of Origin (CO / Form A / FTA), packing list, commercial invoice, B/L and material test certificate
- Delivered to 40+ countries; established freight lanes to Germany, USA, Italy, Poland, Türkiye, Brazil, Mexico and Australia
- Real-time shipment tracking and consolidated container loading for multi-SKU orders
Downloads
Datasheets and inspection templates
FAQ
Answers before you ask
The questions our sales engineers hear most often. Missing something? Message us — a real engineer replies within one business day.
Standard catalogue items ship from stock in single pieces. Custom-machined parts typically start at 20 pieces per SKU, with lower prototype quantities of 1–5 accepted at a modest set-up charge. For high-volume programmes we scale to 100,000+ pieces per year.
Yes — full OEM/ODM capability. Send a 2D drawing (PDF, DWG, DXF), a 3D model (STEP, IGES, X_T) or a physical reference sample. Our engineers issue a DFM review, firm quotation and lead time within one business day. Under NDA we treat every drawing as customer IP and never share it with third parties.
Turning and milling routinely hold ±0.02 mm and Ra 0.8 μm. Ground journals reach IT5 / ±0.005 mm and Ra 0.2 μm. Bore concentricity to 0.01 mm TIR, gear quality to DIN 6 / AGMA 12. Tighter tolerances are quoted on a feature-by-feature basis.
Standard parts ship in 2–3 weeks. Custom-machined and heat-treated parts run 4–6 weeks. Tooling-intensive items (large forgings, sand-cast blanks) or full PPAP approval add 1–2 weeks. Airfreight sample runs can compress this to 10 working days.
Yes. Every shipment includes an EN 10204 3.1 material test certificate (MTC), a dimensional inspection report and — on request — Rockwell/Brinell hardness readings, dynamic balancing reports (ISO 1940) and NDT results (MPI, LPI, UT). PPAP Level 1–5 packages are issued for automotive customers.
The plant is certified to ISO 9001:2015 with an internal quality system aligned to IATF 16949 for automotive customers. Environmental management follows ISO 14001, and welded pressure parts are produced under EN ISO 3834 procedures with certified welders.
Absolutely. We sign mutual NDAs before quotation, restrict drawings to a need-to-know engineering team, and never publish customer part numbers, photos or applications without written approval. Dedicated tooling remains customer property and is stored under lot ID for repeat orders.
Incoterms 2020: EXW, FOB, CFR, CIF, DAP, DDP. Invoicing in USD, EUR, GBP or CNY. Standard terms are 30% T/T deposit with balance against B/L copy; irrevocable L/C at sight is welcomed for orders above USD 30,000, and open account (Net 30–60) is available for approved repeat customers.
Yes. We ship DDP to customer warehouses across the EU, UK, North America, Türkiye and Australia, and support call-off kanban, VMI and consignment stock programmes for repeat OEM customers.
Send your drawing or reference sample to our sales engineers via the inquiry form on this page or by email. You will receive a DFM review, sample quotation and realistic lead time within one business day, followed by an initial sample and inspection report before series release.
