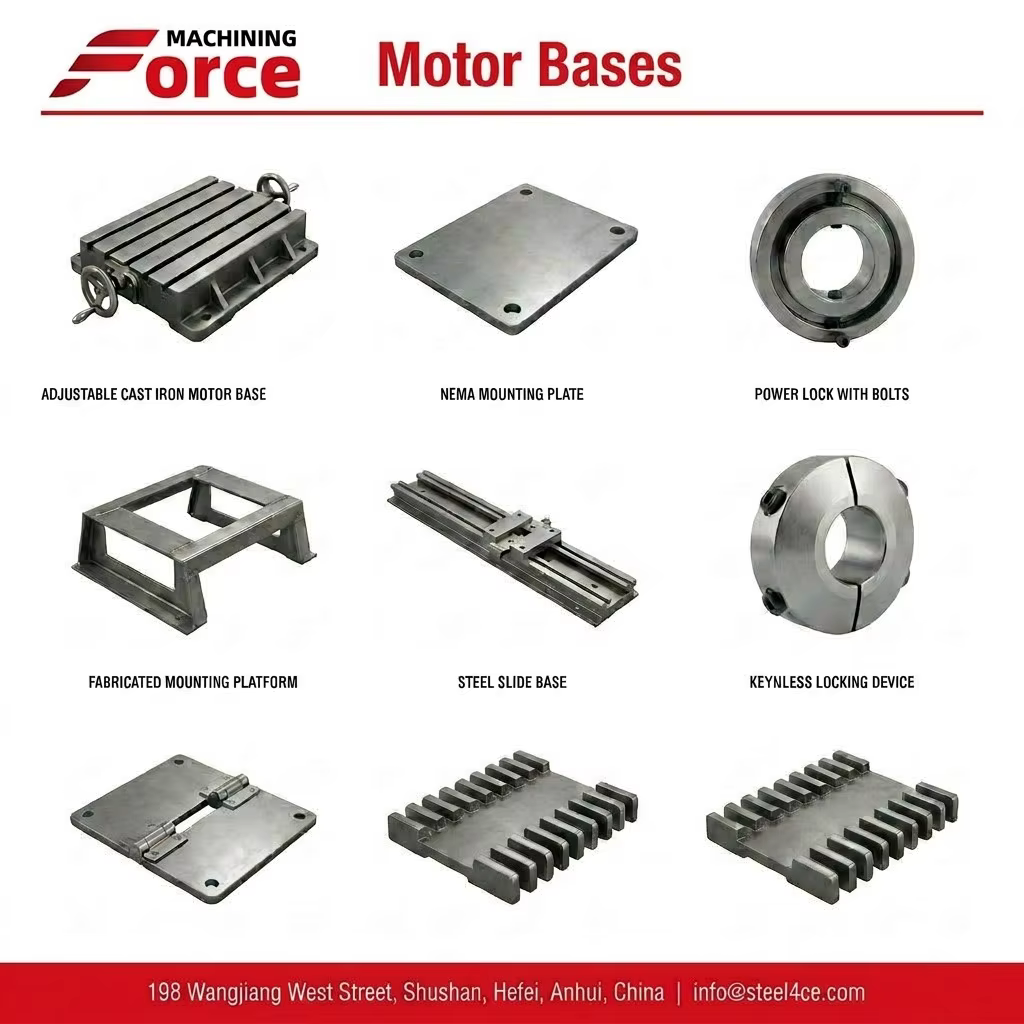

Industrial Motor Bases
Adjustable mounting platforms for electric motors — cast iron and fabricated steel, engineered for precise belt tensioning across NEMA and IEC frame sizes.
Built to your drawing, to your standard
Motor bases are the structural foundation of every belt-driven power transmission system, providing a rigid, precisely aligned platform that secures the electric motor while enabling controlled belt tension adjustment.
Without a properly engineered motor base, even the highest-quality motor and pulley combination will suffer from premature belt wear, vibration-induced bearing failure, and energy-robbing misalignment. At MACHINING Force, we manufacture motor bases that combine structural rigidity with smooth, repeatable adjustment mechanisms — delivering years of reliable service in the most demanding industrial environments.
- Cast iron ASTM A48 Class 30/35 & fabricated steel ASTM A36
- NEMA frames 48, 56, 143T through 449T
- Adjustment range 1.5" – 12" (38 – 305 mm)
- Grade 8.8 / Grade 5 tensioning bolts with locking nuts
- Load capacity up to 5,000 lbs (2,268 kg)
- Epoxy paint, hot-dip galvanized, or stainless steel finish
Why engineers specify Force Machining
Cast iron ASTM A48
Engineered and verified in-house so field performance matches drawing intent.
NEMA frames 48, 56,
Engineered and verified in-house so field performance matches drawing intent.
Adjustment range 1.5"
12" (38 : 305 mm)
Grade 8.8 / Grade
Engineered and verified in-house so field performance matches drawing intent.
Load capacity up to
Engineered and verified in-house so field performance matches drawing intent.
Epoxy paint, hot
dip galvanized, or stainless steel finish
Typical technical envelope
Full material grades, dimensional envelope, load capacity and finish options are listed on the dedicated specifications page.
Where these parts perform
- Conveyor belt drive tensioning
- HVAC fan & blower mounts
- Pump motor alignment
- Compressor drive tensioning
- Agricultural PTO drives
- Crusher & screen mounting
- Industrial mixers & agitators
- Sawmill & wood processing
Headline performance figures
Certified metallurgy at every heat
Every bar and blank arrives with a mill certificate. We match material grade to service duty — from general-purpose carbon steel to corrosion-resistant stainless and high-fatigue alloys.
Cast iron ASTM A48 Class 30/35 or fabricated steel ASTM A36
Sourced from certified mills with EN 10204 3.1 material certificates on request.
From drawing to inspected part
Engineering & DFM Review
Our application engineers review your 2D drawing or 3D STEP model, run a design-for-manufacture study, and recommend material grade, heat treatment and surface finish to meet the specified duty cycle at the lowest landed cost.
Precision Manufacturing
CNC turning, 3–5 axis milling, cylindrical and internal grinding, gear hobbing, induction and case hardening — all performed in-house on calibrated equipment under IATF 16949-aligned process control.
Quality Verification
Statistical process control on critical dimensions, first-article (FAI/PPAP) approval, CMM traceable measurement, Rockwell/Brinell hardness mapping and Ra surface-roughness verification per ISO 9001:2015.
Preservation & Dispatch
VCI oil, desiccant sachet and heat-sealed PE for corrosion protection; ISPM-15 fumigation-free plywood cases; barcode labelling and pre-cleared export documentation for door-to-door delivery.
Trusted across demanding sectors
Our parts run inside gearboxes, drivelines and finished machinery for OEMs in a dozen industries — supported by full traceability and consistent global delivery.
Six layers of verification
Every batch passes chemistry, dimension, hardness, balance, finish and NDT gates before it leaves the plant.
Material Certification (EN 10204 3.1)
Every heat is verified by optical emission spectrometry against the ordered grade. Certified mill test reports (MTC) accompany each shipment and are archived for ten years for full lot-to-lot traceability.
Dimensional Inspection (CMM & FAI)
Zeiss and Mitutoyo coordinate measuring machines verify GD&T callouts to ISO 1101. First-article inspection (FAI) and PPAP Level 3 packages are issued for automotive and safety-critical parts on request.
Hardness & Metallurgical Analysis
Rockwell (HRC), Brinell (HB) and micro-Vickers hardness maps confirm case depth and core properties. Metallographic sections are examined at 100–500× for grain size, phase distribution and inclusion rating.
Dynamic Balancing (ISO 1940)
Rotating components — pulleys, sheaves and gears above 1,800 RPM — are dynamic-balanced to G6.3 as standard, with G2.5 available for high-speed drives. Residual unbalance is reported in g·mm per plane.
Surface Finish & Coating Verification
Contact and non-contact Ra/Rz measurement, coating thickness by magnetic and eddy-current gauge, adhesion by cross-cut, and 500–1,000 h salt-spray corrosion testing per ASTM B117 on plated and painted parts.
Non-Destructive Testing (NDT)
Magnetic particle (MPI), liquid dye penetrant (LPI) and ultrasonic (UT) inspection by ASNT Level II operators. Radiographic (RT) inspection subcontracted to accredited third-party labs when required.
Export-grade packaging
- VCI film wrap and rust-inhibitor oil protect machined surfaces for up to 12 months of storage or transit
- Individual foam, corrugated dividers or moulded PE cradles isolate parts from impact and abrasion
- Fumigation-free plywood cases certified to ISPM-15 accepted at every major port worldwide
- Barcode labels, part-number marking and customer-branded packaging (private label) available on request
- Loose, bulk, palletised or kitted assemblies — packed to your inbound receiving specification
Global shipping desk
- Incoterms 2020: FOB Shanghai / Ningbo / Qingdao standard, with EXW, CIF, CFR, DDP and DAP on request
- Air freight, sea LCL and FCL, and China–Europe rail coordinated in-house — no forwarder hand-offs
- Full export document set — Certificate of Origin (CO / Form A / FTA), packing list, commercial invoice, B/L and material test certificate
- Delivered to 40+ countries; established freight lanes to Germany, USA, Italy, Poland, Türkiye, Brazil, Mexico and Australia
- Real-time shipment tracking and consolidated container loading for multi-SKU orders
Datasheets and inspection templates
Answers before you ask
The questions our sales engineers hear most often. Missing something? Message us — a real engineer replies within one business day.
Variants engineered for every drive
Fixed Motor Base
Rigid non-adjustable platform for direct-coupled drives where no belt tensioning is required.
Learn moreSliding Adjustable Base
Single-axis screw adjustment mechanism for installing and tensioning V-belt drives with precise control.
Learn moreHinged / Pivoting Base
Allows motor weight to provide automatic belt tensioning via gravity, maintaining consistent tension as belts stretch.
Learn moreConversion Base
Adapts existing mounting footprints to accommodate different NEMA frame sizes during motor upgrades.
Learn moreHeavy-Duty Fabricated Base
Welded steel construction engineered for large-frame motors above NEMA 364T with high cyclic loading.
Learn moreExplore adjacent product families
From the engineering desk
Industrial Materials — The Selection Guide
Match cast iron, carbon steel, alloy steel, stainless and nickel alloys to mechanical, corrosion and thermal duty.
ReadCNC Machining — A Buyer's Guide
3-axis vs 4- vs 5-axis, realistic tolerance envelopes, and how to write a drawing that quotes low.
ReadIndustrial Inspection Methods
CMM, spectrometer, hardness, NDT and balancing — what each proves and when to specify it.
ReadRequest a Quote
Send drawings, target quantities and material grade. Firm pricing back within one business day.
Download Catalogue
Complete range, material grades, dimensional envelope and load ratings — the working PDF our engineers use.
Contact Sales
Prefer a call? Book a slot with a sales engineer for spec review and lead-time planning.
Get pricing and lead time
Share drawings, materials and target quantities — a real engineer replies.
Ready to work with Force Machining?
Send drawings, specs or a rough idea — our engineers get back within one business day.
