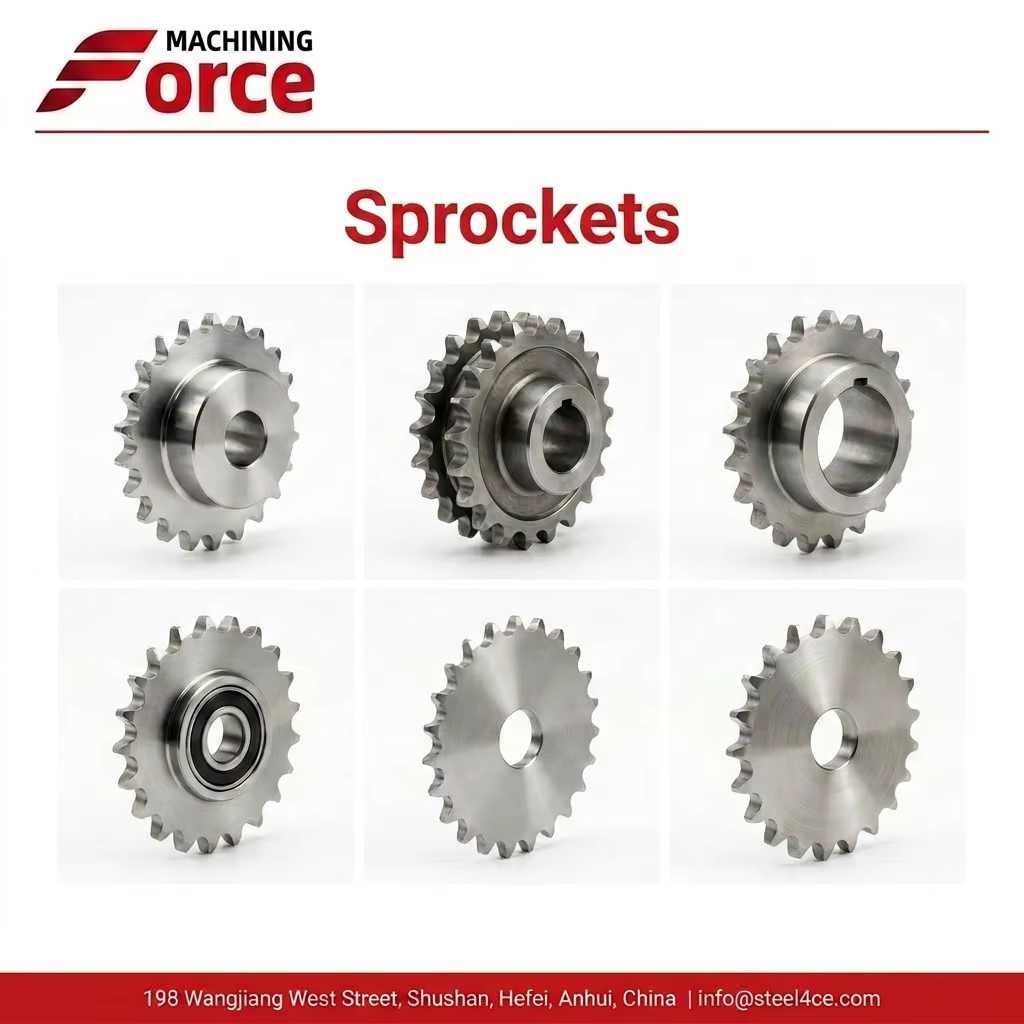

High-precision steel sprockets connected to industrial roller chains in a modern automated production environment

Transmission Parts

Industrial Roller Chain Sprockets

Precision power transmission components — ANSI B29.1 tooth profiles with induction-hardened teeth for zero-slip drives.

Overview

Built to your drawing, to your standard

Sprockets are the toothed wheels that engage roller chains to transmit rotary motion and torque between shafts with exact speed ratios — positive engagement, zero slip, essential for timing-critical drives and heavy shock loads.

MACHINING Force sprockets meet or exceed ANSI B29.1 standards, with tooth profiles precision-cut on CNC equipment and induction-hardened to extend service life under continuous operation. Type II hob-cut profiles are standard; Type III precision-cut available for high-speed drives.

ANSI 25 – 160 & ISO 06B – 32B roller chain
C45, 40Cr, 304/316 stainless, ductile iron GGG50
Induction-hardened teeth to HRC 45-55
Simplex, duplex, triplex, platewheel & idler
Pilot, keyway, taper lock or QD bushing bores
6 to 120 teeth per sprocket
